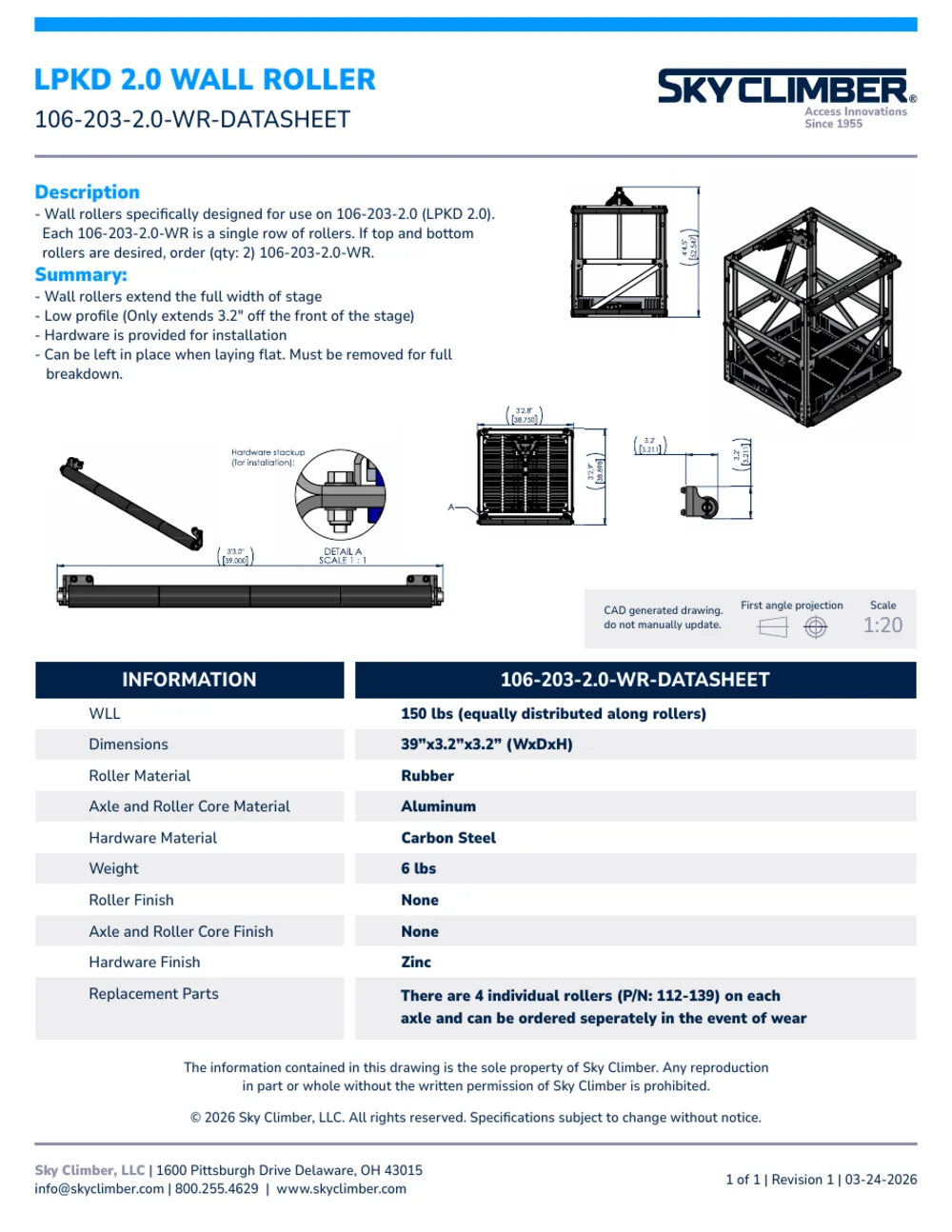

LPKD 2.0 Wall Roller 106-203-2.0-WR-DATASHEET
Overview
Wall rollers specifically designed for use on 106-203-2.0 (LPKD 2.0). Each 106-203-2.0-WR is a single row of rollers. If top and bottom rollers are desired, order (qty: 2) 106-203-2.0-WR.
Overview quoted from the approved datasheet.
Specifications
| WLL | 150 lbs (equally distributed along rollers) |
|---|---|
| Dimensions | 39”x3.2”x3.2” (WxDxH) |
| Roller Material | Rubber |
| Axle and Roller Core Material | Aluminum |
| Hardware Material | Carbon Steel |
| Weight | 6 lbs |
| Roller Finish | None |
| Axle and Roller Core Finish | None |
| Hardware Finish | Zinc |
| Replacement Parts | There are 4 individual rollers (P/N: 112-139) on each axle and can be ordered seperately in the event of wear |
Specifications quoted from the approved datasheet, Revision 1, 03-24-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
