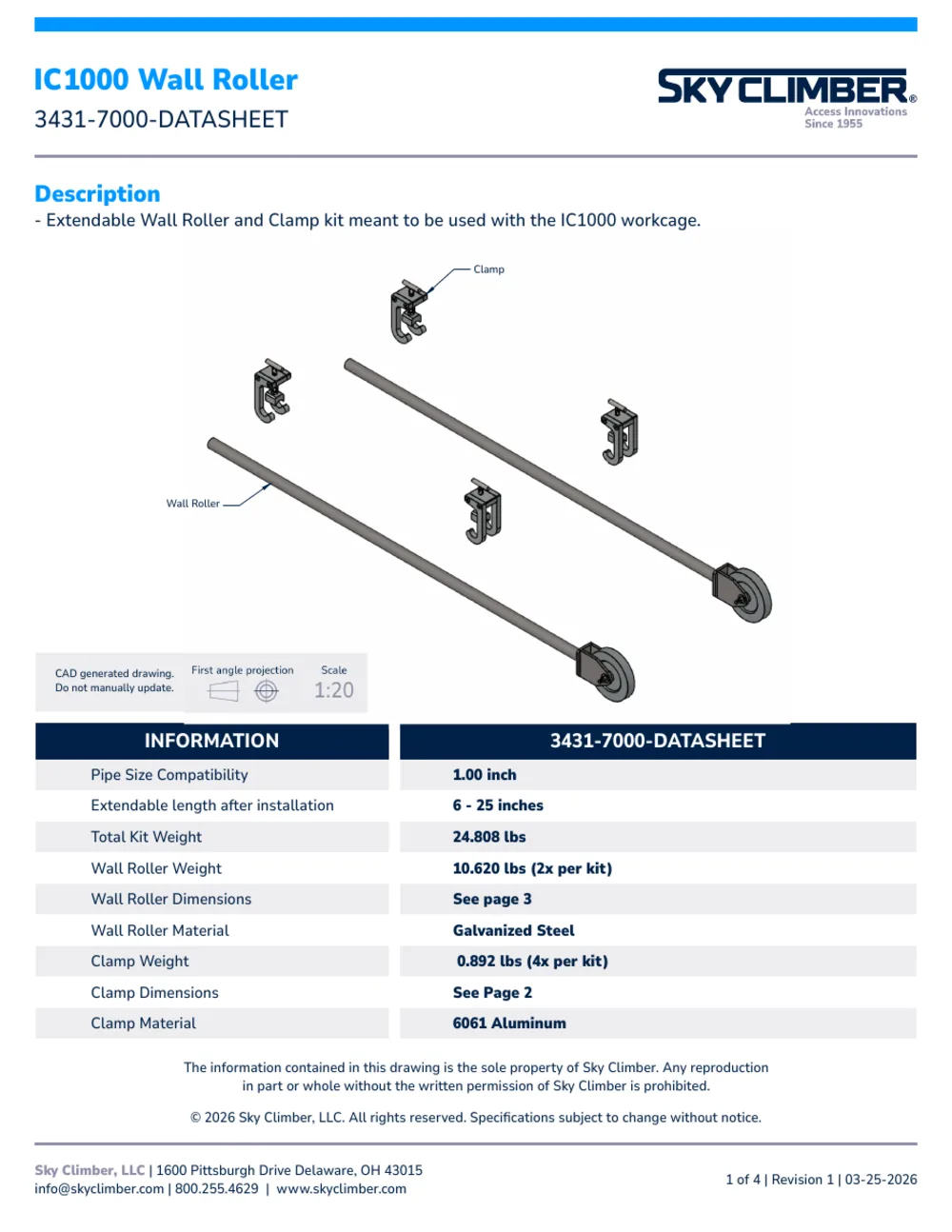

IC1000 Wall Roller 3431-7000-DATASHEET
Overview
Extendable Wall Roller and Clamp kit meant to be used with the IC1000 workcage.
Overview quoted from the approved datasheet.
Specifications
| Pipe Size Compatibility | 1.00 inch |
|---|---|
| Extendable length after installation | 6 - 25 inches |
| Total Kit Weight | 24.808 lbs |
| Wall Roller Weight | 10.620 lbs (2x per kit) |
| Wall Roller Dimensions | See page 3 |
| Wall Roller Material | Galvanized Steel |
| Clamp Weight | 0.892 lbs (4x per kit) |
| Clamp Dimensions | See Page 2 |
| Clamp Material | 6061 Aluminum |
Specifications quoted from the approved datasheet, Revision 1, 03-25-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
