LPKD 2.0 106-203-2.0-DATASHEET
Overview
Standalone work cage that does not require any additional stirrup (hoist not included). The LPKD 2.0 specializes in ease of transport with two conventient "knockdown" methods, both of which are completed soley by removing pins (no tools required).
Overview quoted from the approved datasheet.
Specifications
| WLL | 850 lbs |
|---|---|
| Dimensions | 38.75”x36.25”x52.5” (WxDxH) |
| Sheave, Sheave Housing, and Hoist Connection Material | Carbon Steel |
| All Other Structure Material | Aluminum |
| Hardware Material | Carbon Steel, Stainless Steel |
| Certification | UL 1323 (ETL listed) |
| Weight | 128 lbs |
| Sheave, Sheave Housing, and Hoist Connection Finish | Blue Powder Coat |
| All Other Structure Finish | None |
| Hardware Finish | Zinc, None |

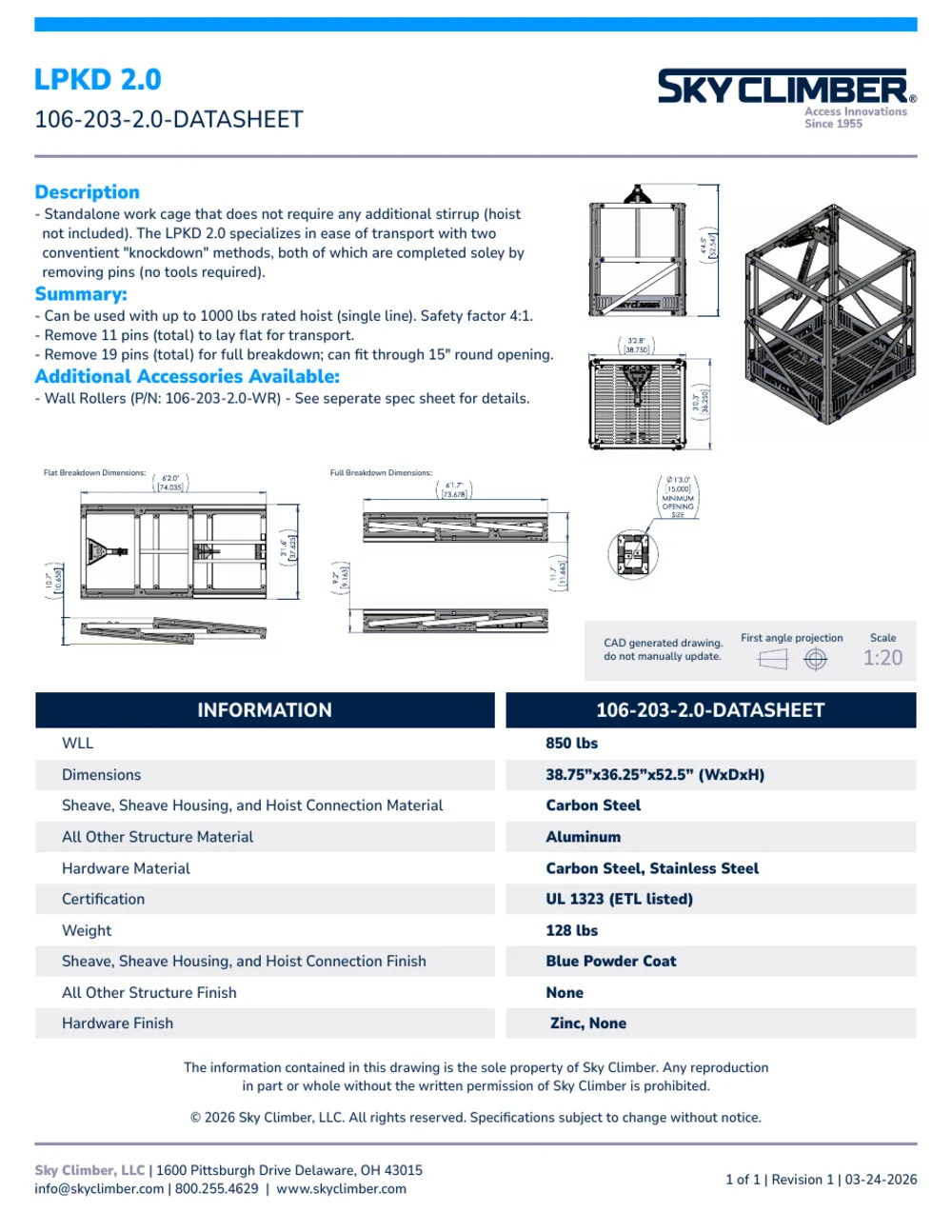

Specifications quoted from the approved datasheet, Revision 1, 03-24-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
