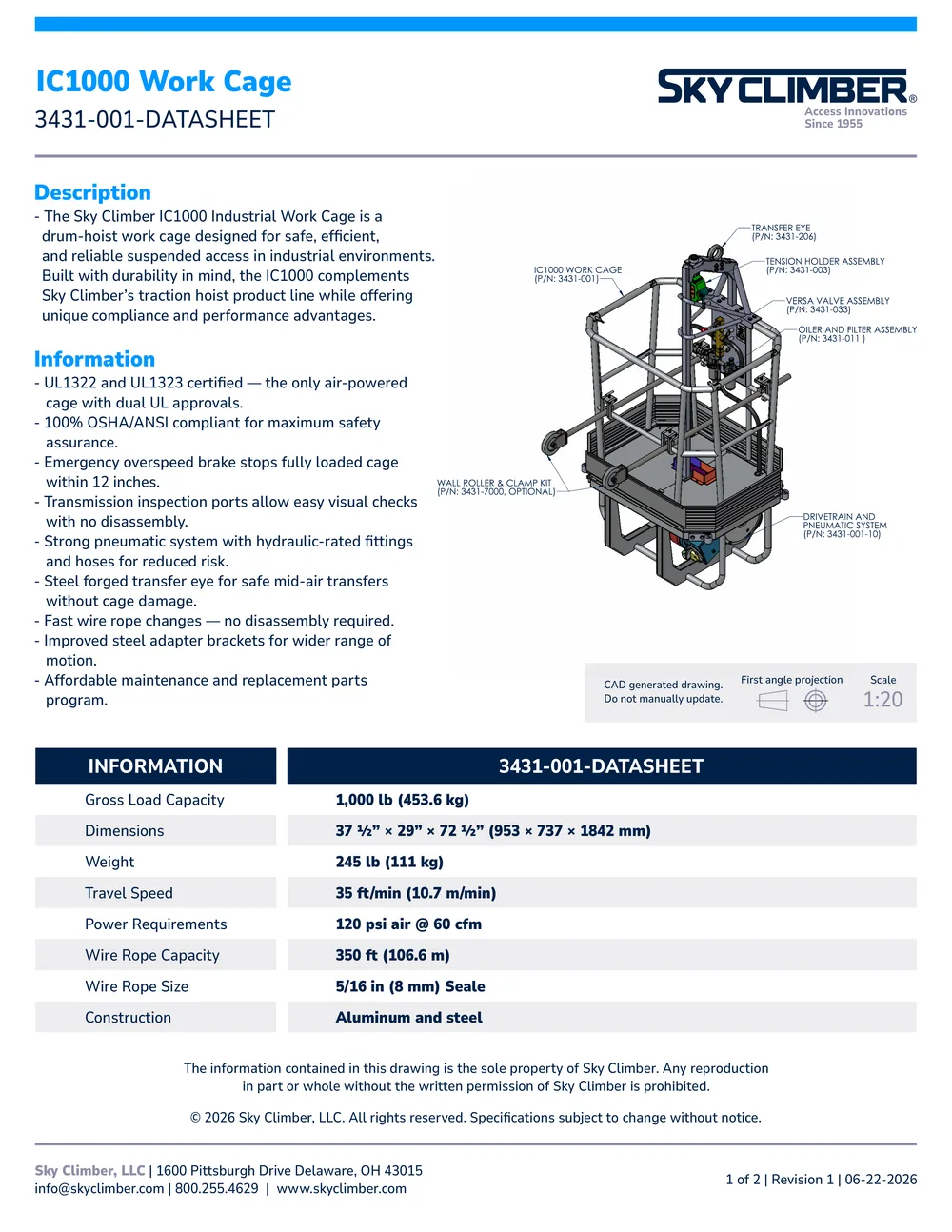

IC1000 Work Cage 3431-001-DATASHEET
Overview
The Sky Climber IC1000 Industrial Work Cage is a drum-hoist work cage designed for safe, efficient, and reliable suspended access in industrial environments. Built with durability in mind, the IC1000 complements Sky Climber’s traction hoist product line while offering unique compliance and performance advantages.
Overview quoted from the approved datasheet.
Specifications
| Gross Load Capacity | 1,000 lb (453.6 kg) |
|---|---|
| Dimensions | 37 ½” × 29” × 72 ½” (953 × 737 × 1842 mm) |
| Weight | 245 lb (111 kg) |
| Travel Speed | 35 ft/min (10.7 m/min) |
| Power Requirements | 120 psi air @ 60 cfm |
| Wire Rope Capacity | 350 ft (106.6 m) |
| Wire Rope Size | 5/16 in (8 mm) Seale |
| Construction | Aluminum and steel |
Specifications quoted from the approved datasheet, Revision 1, 06-22-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
