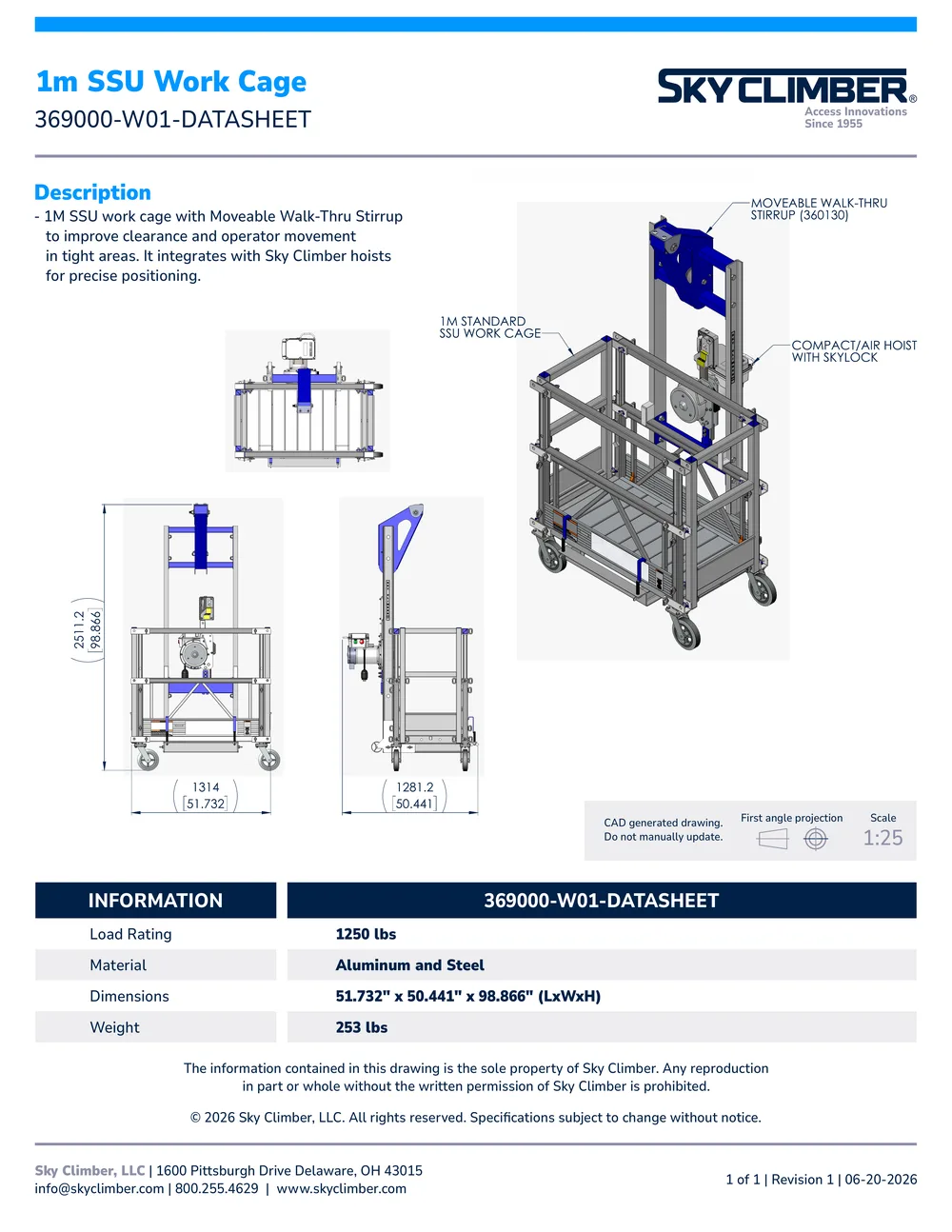

1M SSU Work Cage with Walk-Thru Stirrup 369000-W01-DATASHEET
Overview
1M SSU work cage with Moveable Walk-Thru Stirrup to improve clearance and operator movement in tight areas. It integrates with Sky Climber hoists for precise positioning.
Overview quoted from the approved datasheet.
Specifications
| Load Rating | 1250 lbs |
|---|---|
| Material | Aluminum and Steel |
| Dimensions | 51.732" x 50.441" x 98.866" (LxWxH) |
| Weight | 253 lbs |
Specifications quoted from the approved datasheet, Revision 1, 06-20-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
