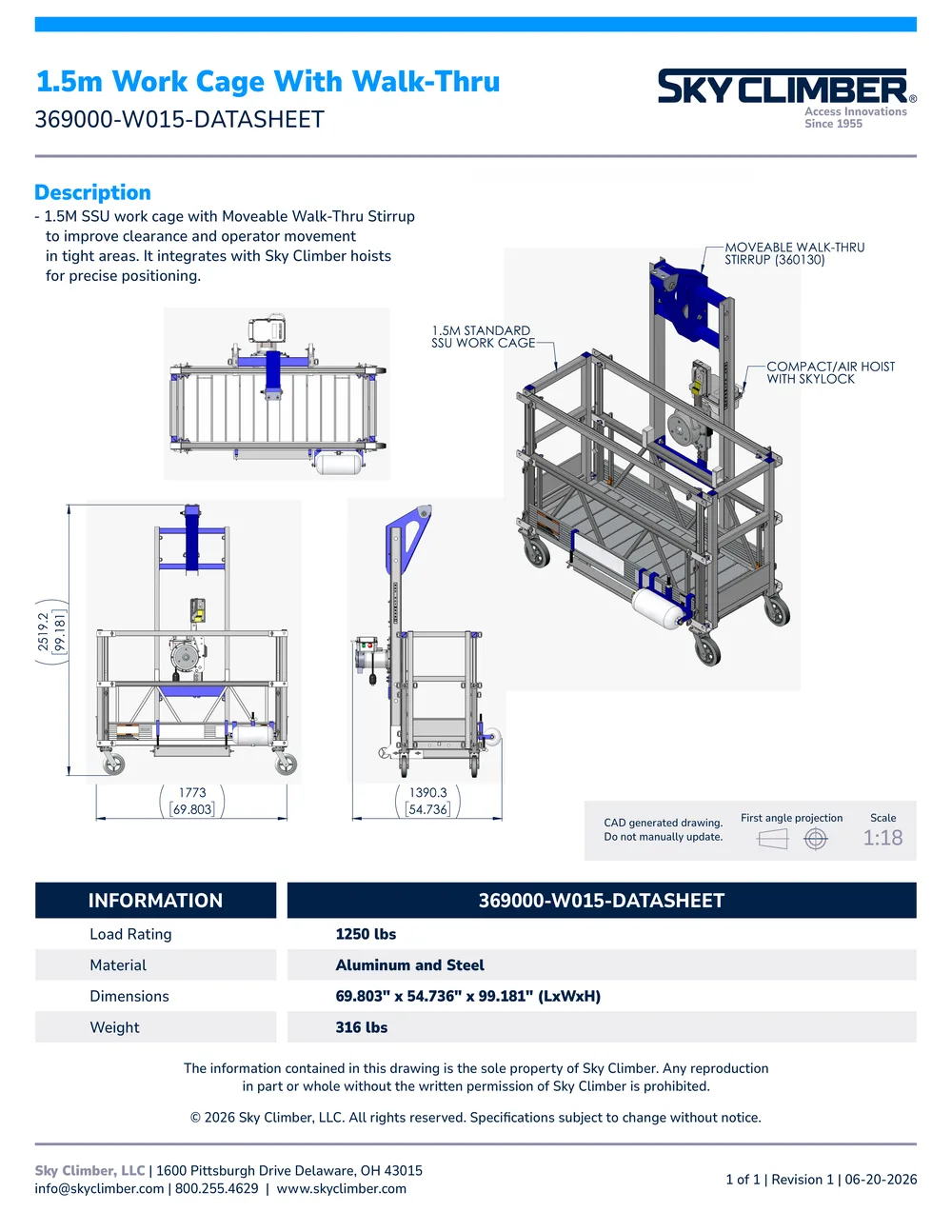

1.5M SSU Work Cage with Walk-Thru Stirrup 369000-W015-DATASHEET
Overview
1.5M SSU work cage with Moveable Walk-Thru Stirrup to improve clearance and operator movement in tight areas. It integrates with Sky Climber hoists for precise positioning.
Overview quoted from the approved datasheet.
Specifications
| Load Rating | 1250 lbs |
|---|---|
| Material | Aluminum and Steel |
| Dimensions | 69.803" x 54.736" x 99.181" (LxWxH) |
| Weight | 316 lbs |
Specifications quoted from the approved datasheet, Revision 1, 06-20-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
