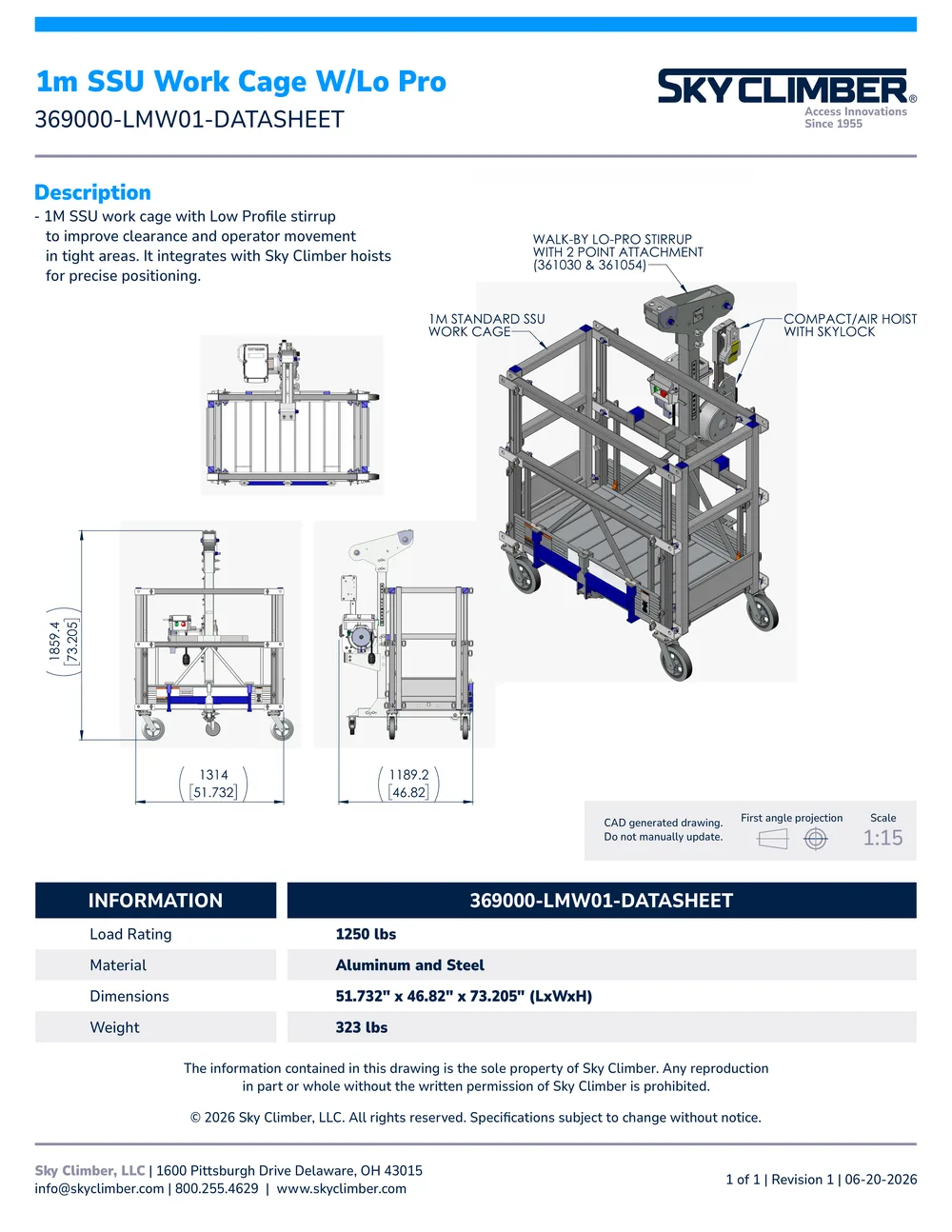

1M SSU Work Cage with Low Profile Stirrup 369000-LMW01-DATASHEET
Overview
1M SSU work cage with Low Profile stirrup to improve clearance and operator movement in tight areas. It integrates with Sky Climber hoists for precise positioning.
Overview quoted from the approved datasheet.
Specifications
| Load Rating | 1250 lbs |
|---|---|
| Material | Aluminum and Steel |
| Dimensions | 51.732" x 46.82" x 73.205" (LxWxH) |
| Weight | 323 lbs |
Specifications quoted from the approved datasheet, Revision 1, 06-20-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
