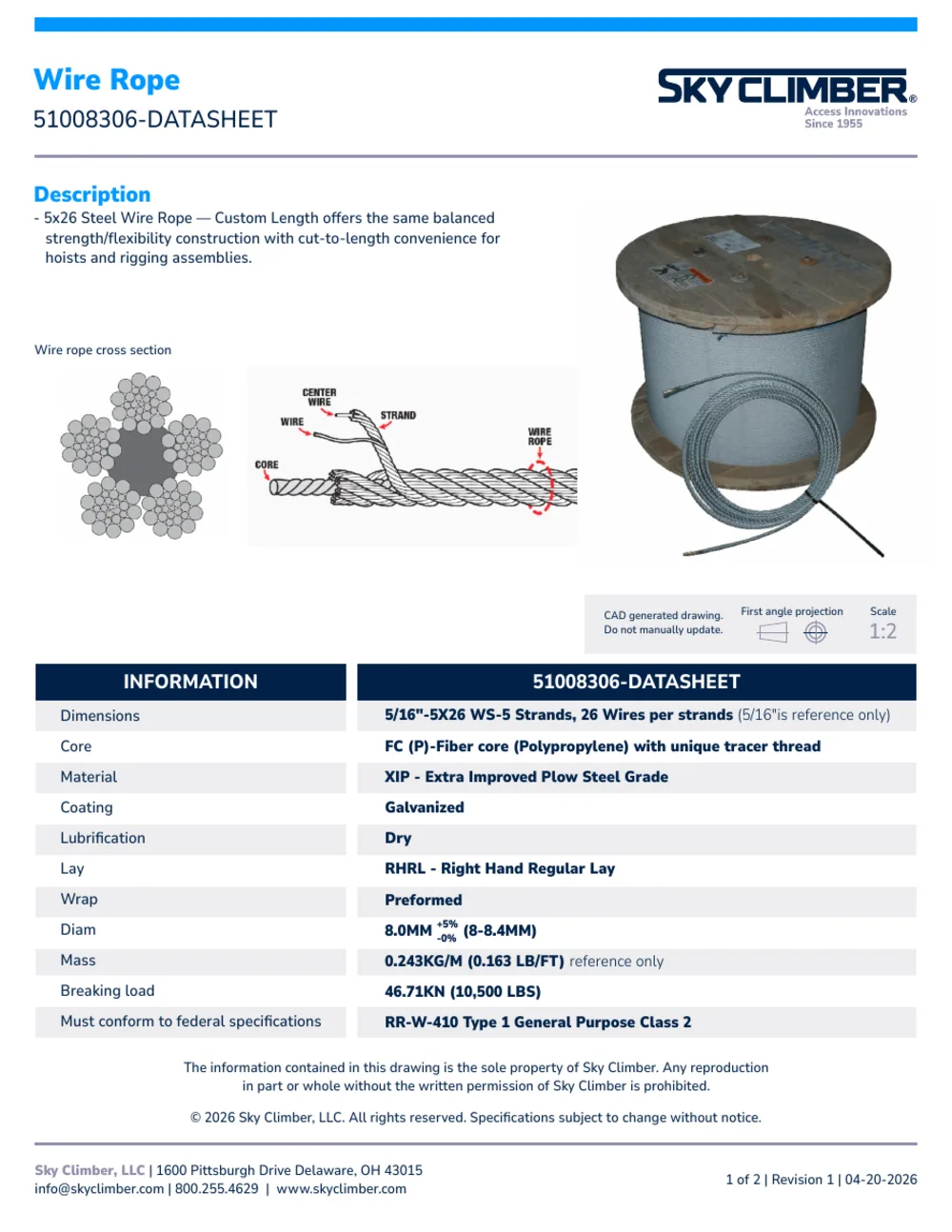

Wire Rope 51008306-DATASHEET
Overview
5×26 Steel Wire Rope — Custom Length offers the same balanced strength/flexibility construction with cut-to-length convenience for hoists and rigging assemblies.
Overview quoted from the approved datasheet.
Specifications
| Dimensions | 5/16"-5X26 WS-5 Strands, 26 Wires per strands (5/16"is reference only) |
|---|---|
| Core | FC (P)-Fiber core (Polypropylene) with unique tracer thread |
| Material | XIP - Extra Improved Plow Steel Grade |
| Coating | Galvanized |
| Lubrification | Dry |
| Lay | RHRL - Right Hand Regular Lay |
| Wrap | Preformed |
| Diam | 8.0MM +5% -0% (8-8.4MM) |
| Mass | 0.243KG/M (0.163 LB/FT) reference only |
| Breaking load | 46.71KN (10,500 LBS) |
| Must conform to federal specifications | RR-W-410 Type 1 General Purpose Class 2 |
Specifications quoted from the approved datasheet, Revision 1, 04-20-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
