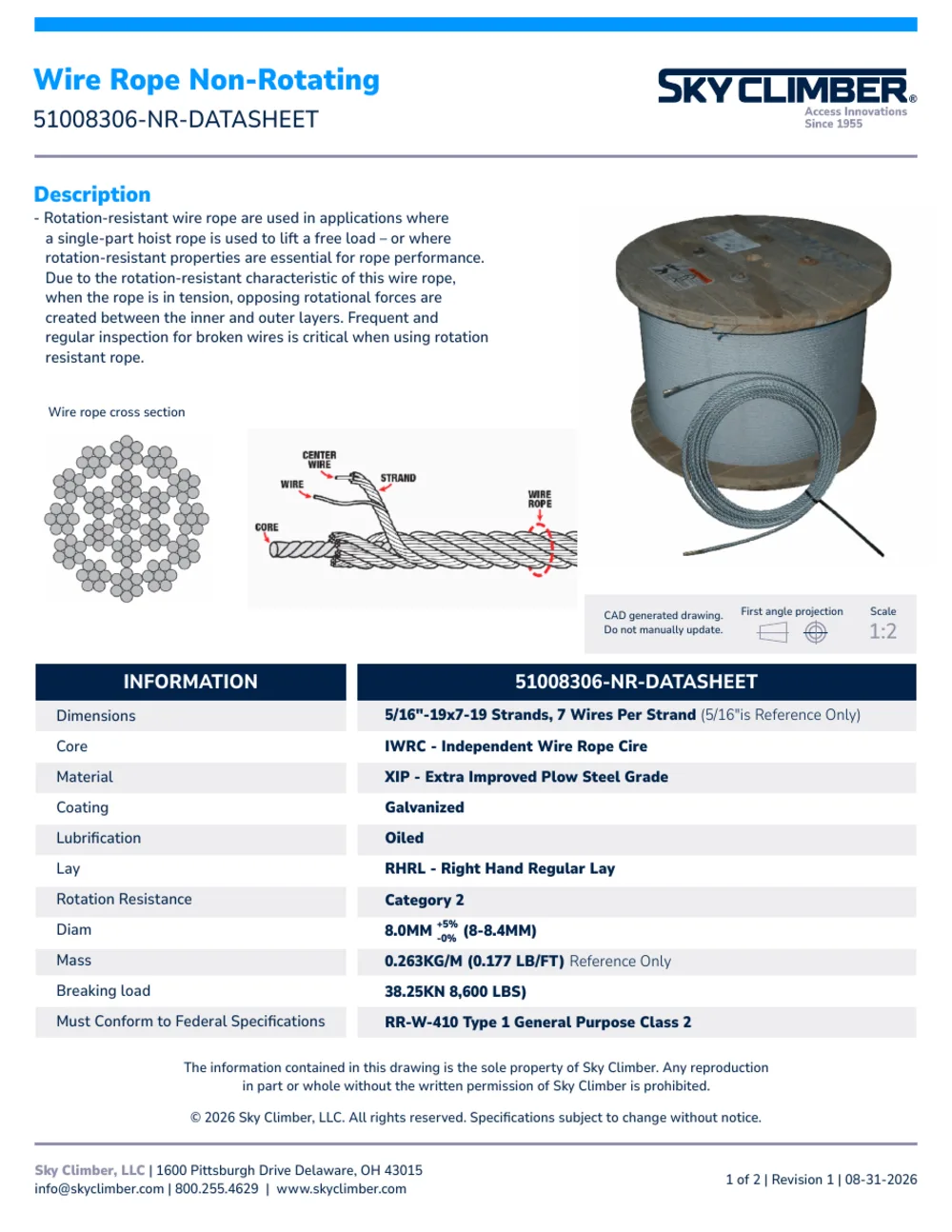

Non-Rotating Wire Rope 51008306-NR-DATASHEET
Overview
Rotation-resistant wire rope are used in applications where a single-part hoist rope is used to lift a free load – or where rotation-resistant properties are essential for rope performance. Due to the rotation-resistant characteristic of this wire rope, when the rope is in tension, opposing rotational forces are created between the inner and outer layers. Frequent and regular inspection for broken wires is critical when using rotation resistant rope.
Overview quoted from the approved datasheet.
Specifications
| Dimensions | 5/16"-19x7-19 Strands, 7 Wires Per Strand (5/16"is Reference Only) |
|---|---|
| Core | IWRC - Independent Wire Rope Cire |
| Material | XIP - Extra Improved Plow Steel Grade |
| Coating | Galvanized |
| Lubrification | Oiled |
| Lay | RHRL - Right Hand Regular Lay |
| Rotation Resistance | Category 2 |
| Diam | 8.0MM +5% -0% (8-8.4MM) |
| Mass | 0.263KG/M (0.177 LB/FT) Reference Only |
| Breaking load | 38.25KN 8,600 LBS) |
| Must Conform to Federal Specifications | RR-W-410 Type 1 General Purpose Class 2 |
Specifications quoted from the approved datasheet, Revision 1, 08-31-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
