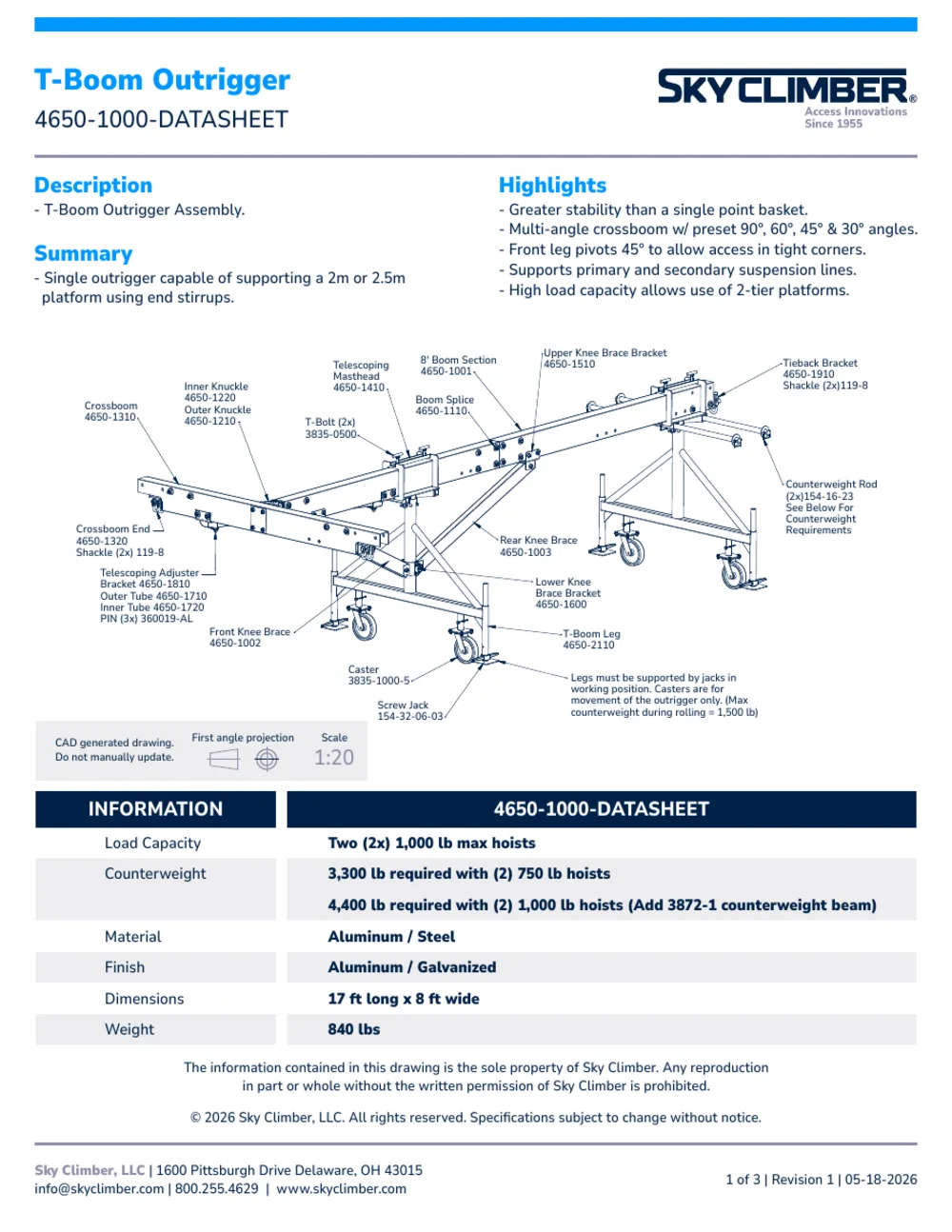

TBOOM 4650-1000-DATASHEET
Overview
T-Boom Outrigger Assembly.
Overview quoted from the approved datasheet.
Specifications
| Load Capacity | Two (2x) 1,000 lb max hoists |
|---|---|
| Counterweight | 3,300 lb required with (2) 750 lb hoists 4,400 lb required with (2) 1,000 lb hoists (Add 3872-1 counterweight beam) |
| Material | Aluminum / Steel |
| Finish | Aluminum / Galvanized |
| Dimensions | 17 ft long x 8 ft wide |
| Weight | 840 lbs |
Specifications quoted from the approved datasheet, Revision 1, 05-18-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
