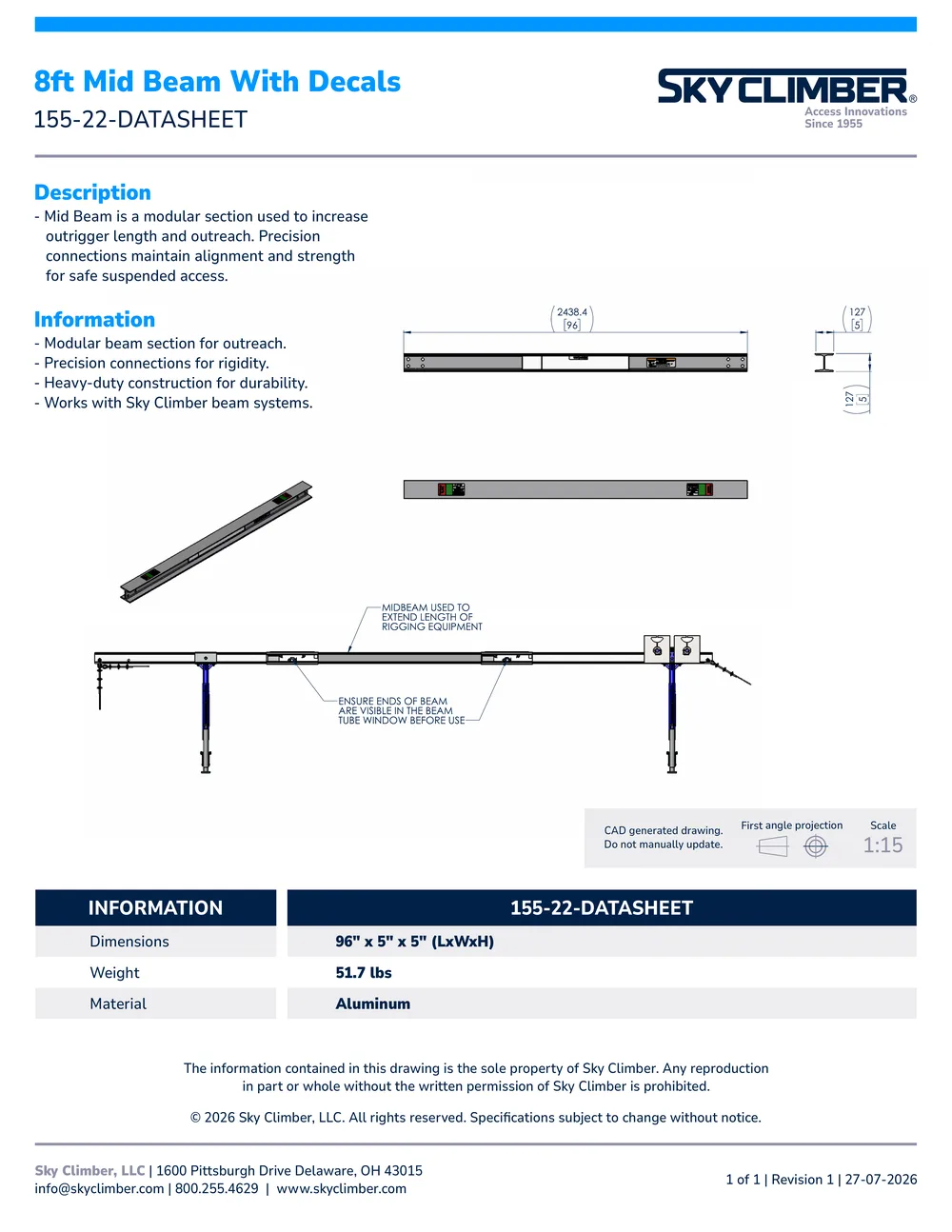

8ft Mid Beam 155-22-DATASHEET
Overview
Mid Beam is a modular section used to increase outrigger length and outreach. Precision connections maintain alignment and strength for safe suspended access.
Overview quoted from the approved datasheet.
Specifications
| Dimensions | 96" x 5" x 5" (LxWxH) |
|---|---|
| Weight | 51.7 lbs |
| Material | Aluminum |
Specifications quoted from the approved datasheet, Revision 1, 27-07-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
