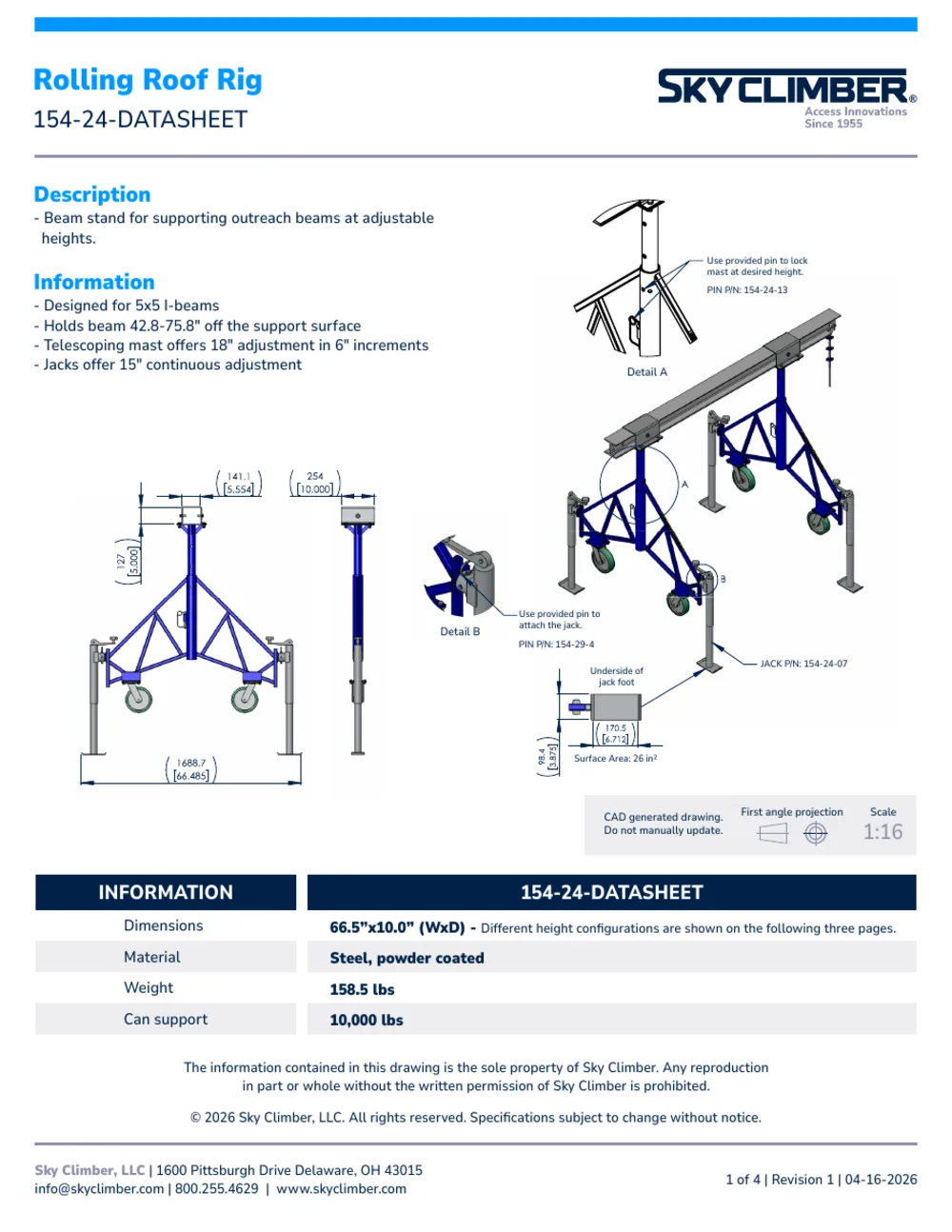

Rolling Roof Rig 154-24-DATASHEET
Overview
Beam stand for supporting outreach beams at adjustable heights.
Overview quoted from the approved datasheet.
Specifications
| Dimensions | 66.5”x10.0” (WxD) - Different height configurations are shown on the following three pages. |
|---|---|
| Material | Steel, powder coated |
| Weight | 158.5 lbs |
| Can support | 10,000 lbs |
Specifications quoted from the approved datasheet, Revision 1, 04-16-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
