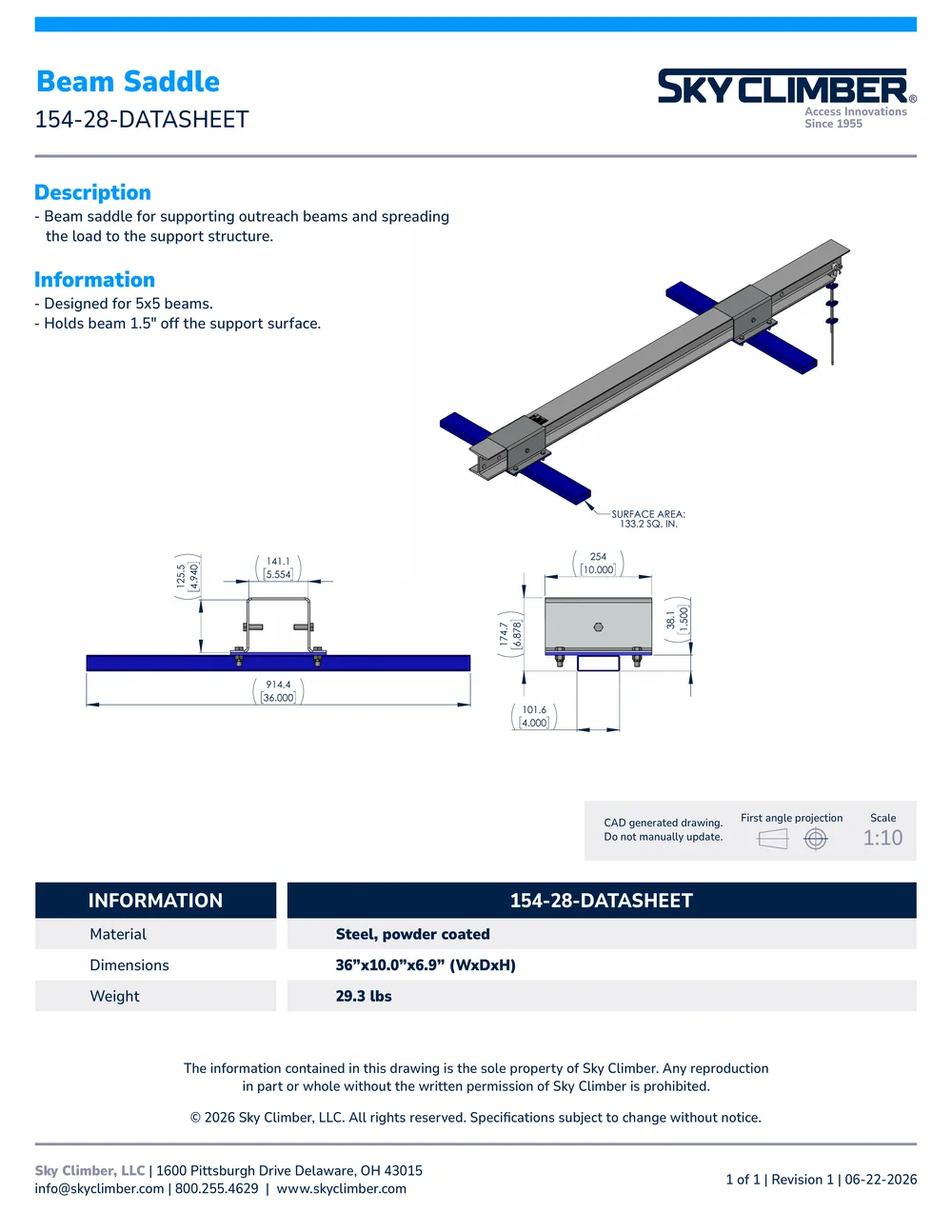

Beam Saddle 154-28-DATASHEET
Overview
Beam saddle for supporting outreach beams and spreading the load to the support structure.
Overview quoted from the approved datasheet.
Specifications
| Material | Steel, powder coated |
|---|---|
| Dimensions | 36”x10.0”x6.9” (WxDxH) |
| Weight | 29.3 lbs |
Specifications quoted from the approved datasheet, Revision 1, 06-22-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
