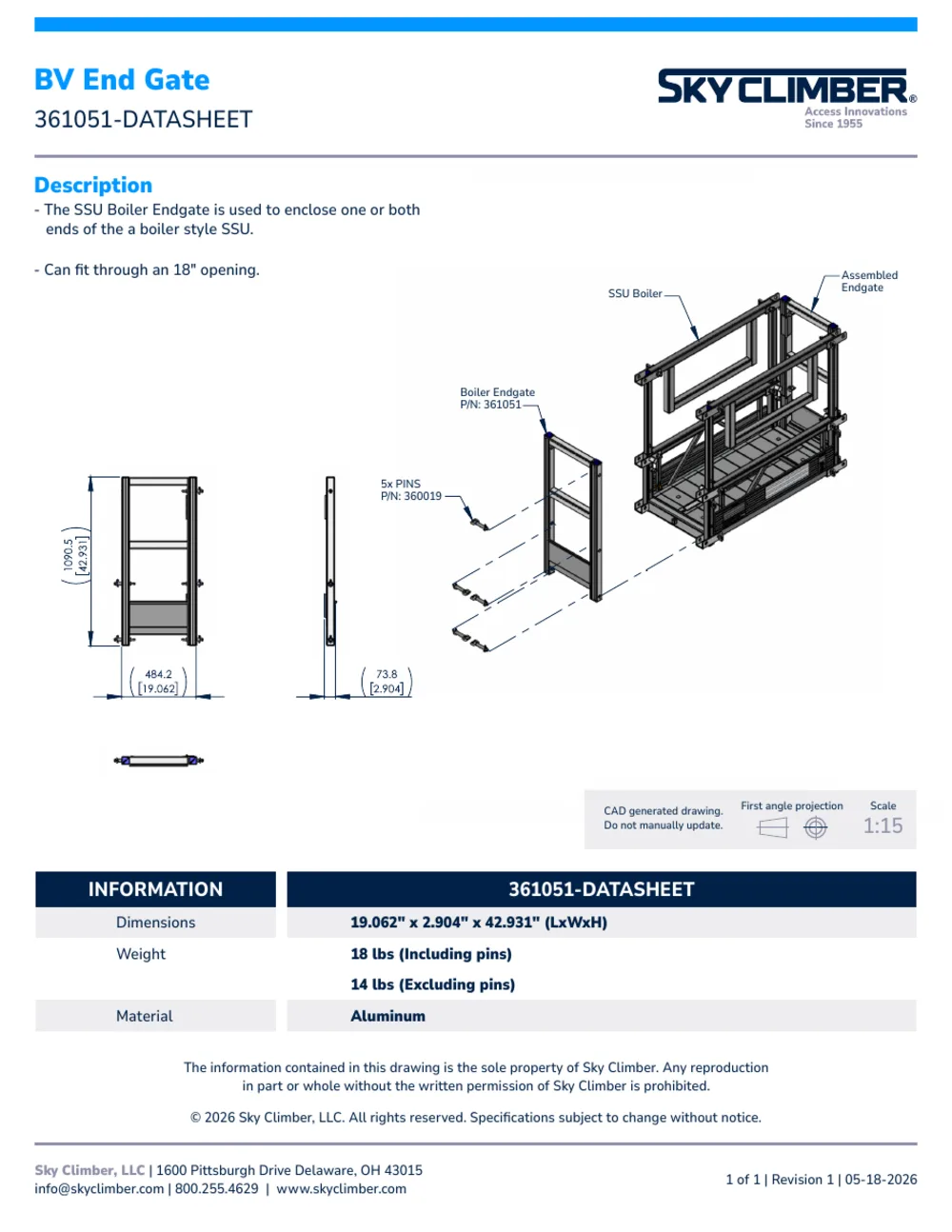

SSU Boiler End Gate 361051-DATASHEET
Overview
The SSU Boiler Endgate is used to enclose one or both ends of the a boiler style SSU.
Can fit through an 18" opening.
Overview quoted from the approved datasheet.
Specifications
| Dimensions | 19.062" x 2.904" x 42.931" (LxWxH) |
|---|---|
| Weight | 18 lbs (Including pins) 14 lbs (Excluding pins) |
| Material | Aluminum |
Specifications quoted from the approved datasheet, Revision 1, 05-18-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
