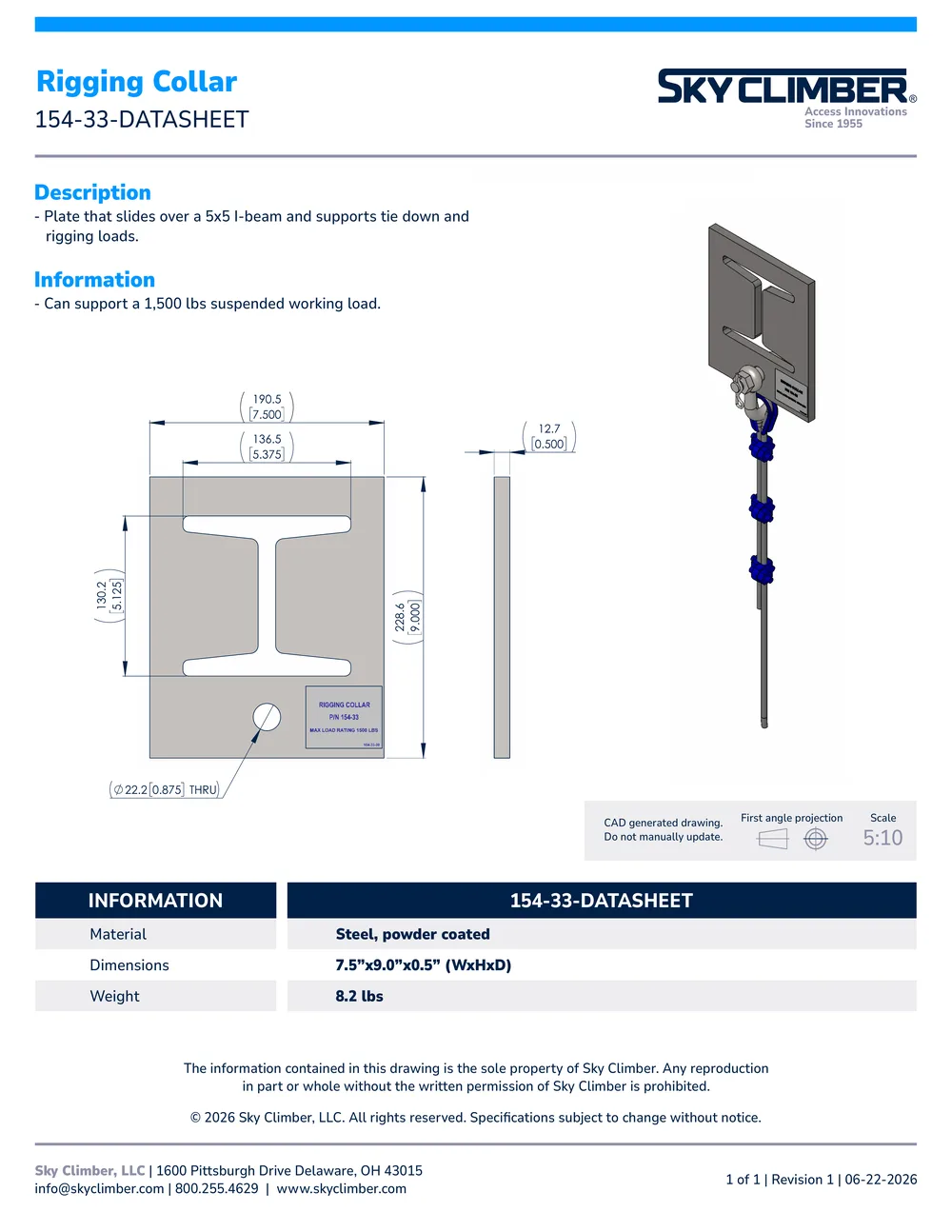

Rigging Collar 154-33-DATASHEET
Overview
Plate that slides over a 5×5 I-beam and supports tie down and rigging loads.
Overview quoted from the approved datasheet.
Specifications
| Material | Steel, powder coated |
|---|---|
| Dimensions | 7.5”x9.0”x0.5” (WxHxD) |
| Weight | 8.2 lbs |
Specifications quoted from the approved datasheet, Revision 1, 06-22-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
