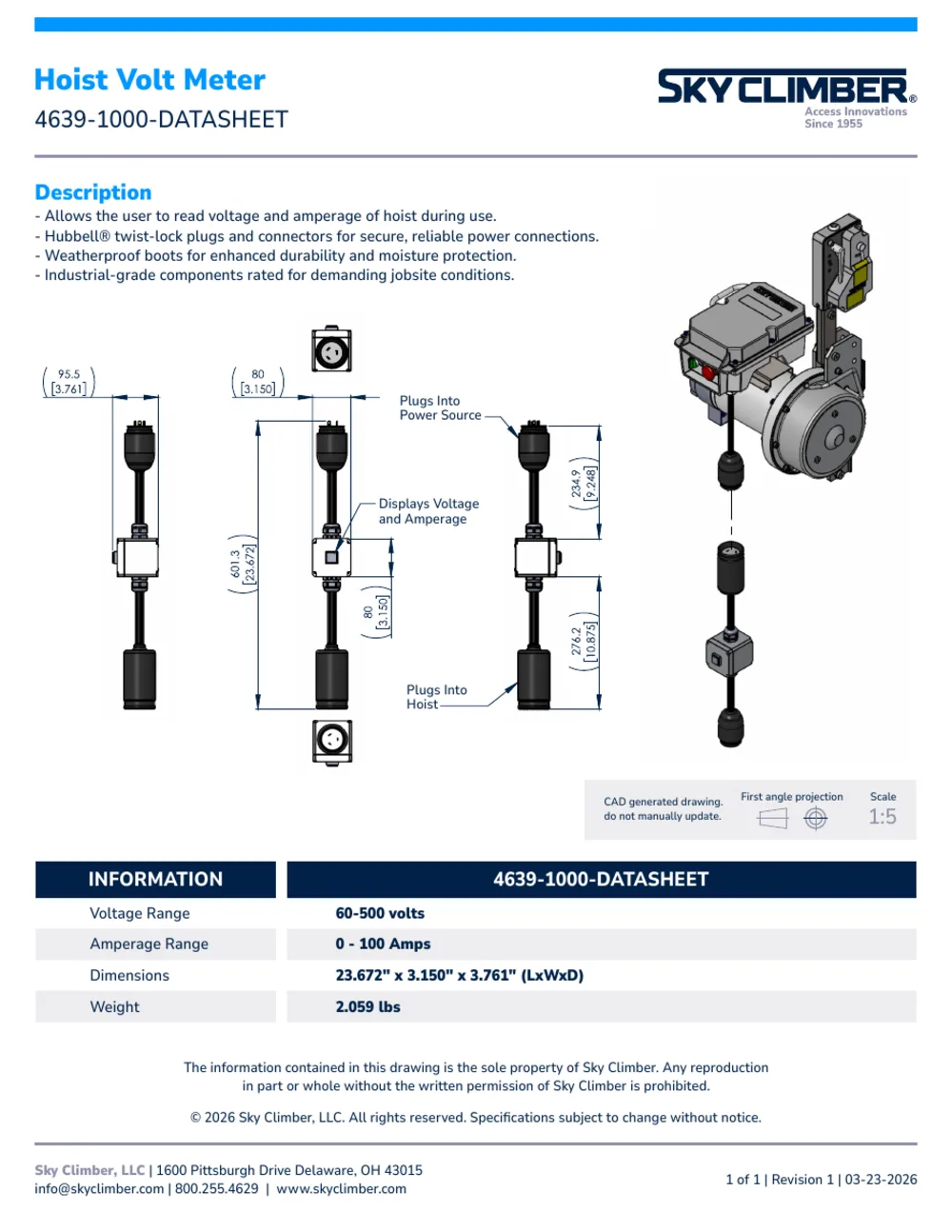

Hoist Volt Meter 4639-1000-DATASHEET
Overview
Allows the user to read voltage and amperage of hoist during use.
Hubbell® twist-lock plugs and connectors for secure, reliable power connections.
Weatherproof boots for enhanced durability and moisture protection.
Industrial-grade components rated for demanding jobsite conditions.
Overview quoted from the approved datasheet.
Specifications
| Voltage Range | 60-500 volts |
|---|---|
| Amperage Range | 0 - 100 Amps |
| Dimensions | 23.672" x 3.150" x 3.761" (LxWxD) |
| Weight | 2.059 lbs |
Specifications quoted from the approved datasheet, Revision 1, 03-23-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
