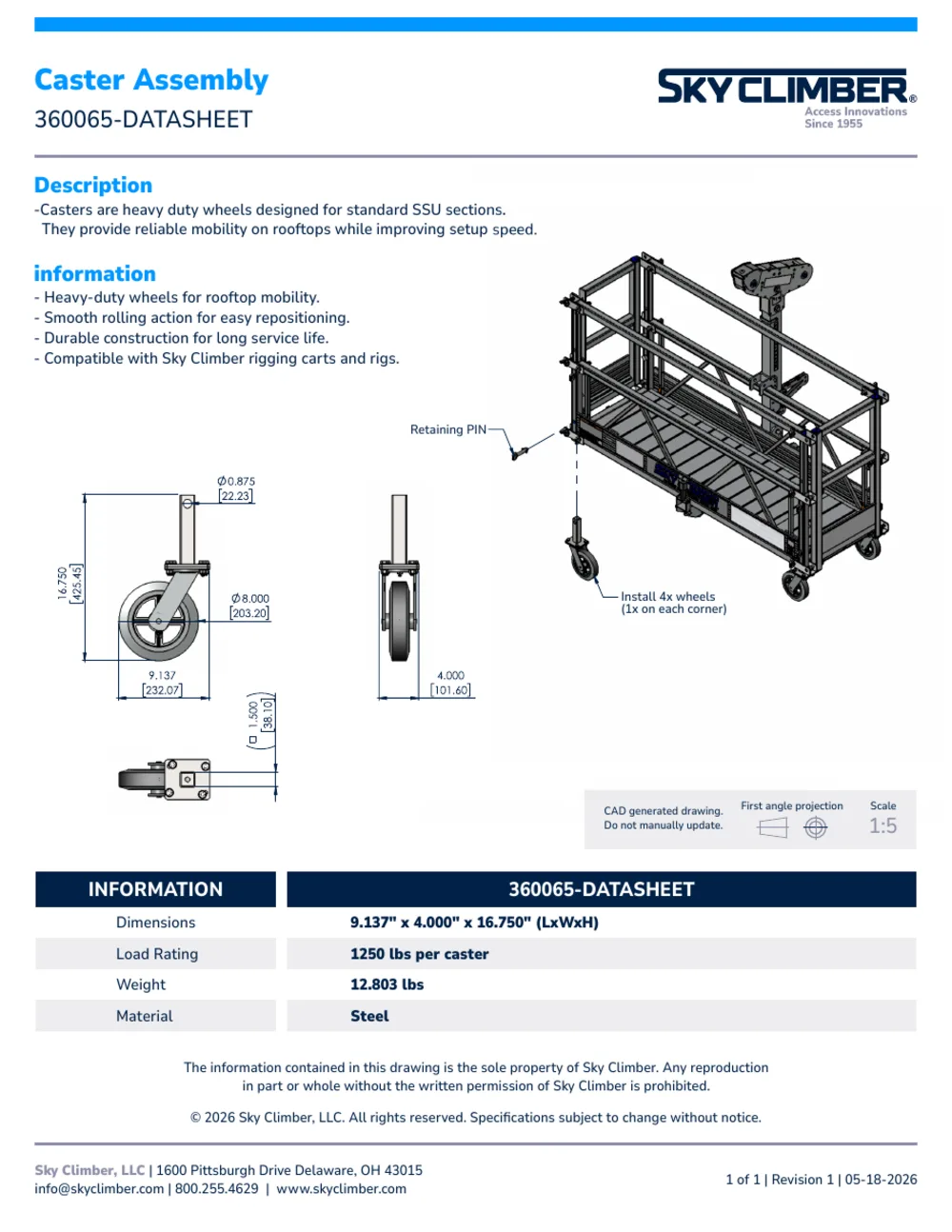

Caster Assembly 360065-DATASHEET
Overview
Casters are heavy duty wheels designed for standard SSU sections. They provide reliable mobility on rooftops while improving setup speed.
Overview quoted from the approved datasheet.
Specifications
| Dimensions | 9.137" x 4.000" x 16.750" (LxWxH) |
|---|---|
| Load Rating | 1250 lbs per caster |
| Weight | 12.803 lbs |
| Material | Steel |
Specifications quoted from the approved datasheet, Revision 1, 05-18-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
