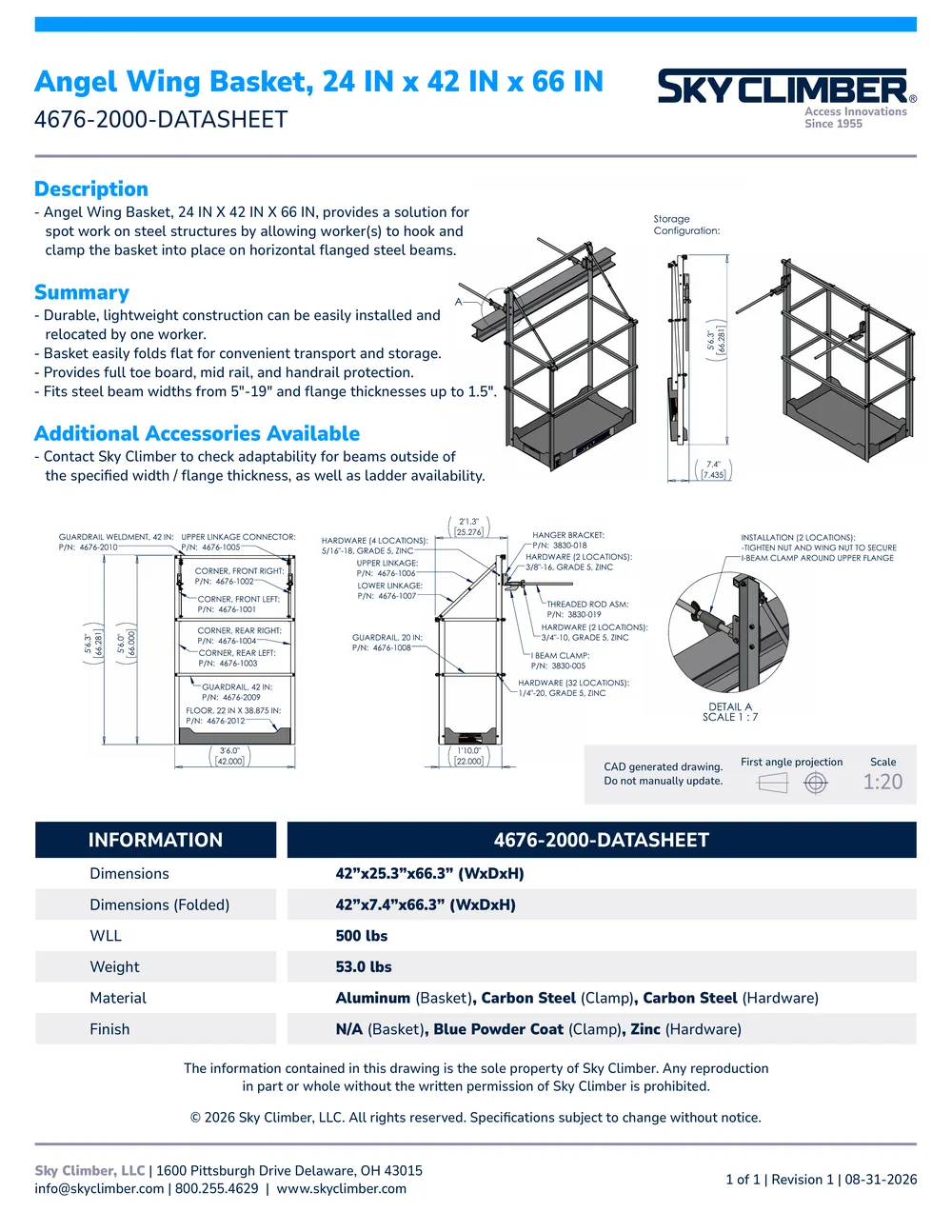

Angel Wing Basket 24x42x66 4676-2000-DATASHEET
Overview
Angel Wing Basket, 24 IN X 42 IN X 66 IN, provides a solution for spot work on steel structures by allowing worker(s) to hook and clamp the basket into place on horizontal flanged steel beams.
Overview quoted from the approved datasheet.
Specifications
| Dimensions | 42”x25.3”x66.3” (WxDxH) |
|---|---|
| Dimensions (Folded) | 42”x7.4”x66.3” (WxDxH) |
| WLL | 500 lbs |
| Weight | 53.0 lbs |
| Material | Aluminum (Basket), Carbon Steel (Clamp), Carbon Steel (Hardware) |
| Finish | N/A (Basket), Blue Powder Coat (Clamp), Zinc (Hardware) |
Specifications quoted from the approved datasheet, Revision 1, 08-31-2026. The PDF governs if there is any difference.
Related Documents
The PDF datasheet is the approved specification. Always refer to it and to the operator manual for your equipment.
